Introduction of Qin-Tech New Energy Aerogel Thermal Insulation And Laminating Equipment

As the country promotes "Made in China 2025", intelligent manufacturing is becoming more and more important in enterprise production. China's industrial transformation must develop to the high-end industrial direction. Among them, the use of intelligent automation equipment, is also an important milestone in the high-end development of enterprises. Its reflected advantages are: the use of automation equipment, can reduce human resources, reduce the production cost of products; Improve efficiency and increase capacity.

Today, Xiaobian will introduce to you a new energy aerogel insulation and laminating equipment developed and produced by Qin-Tech.

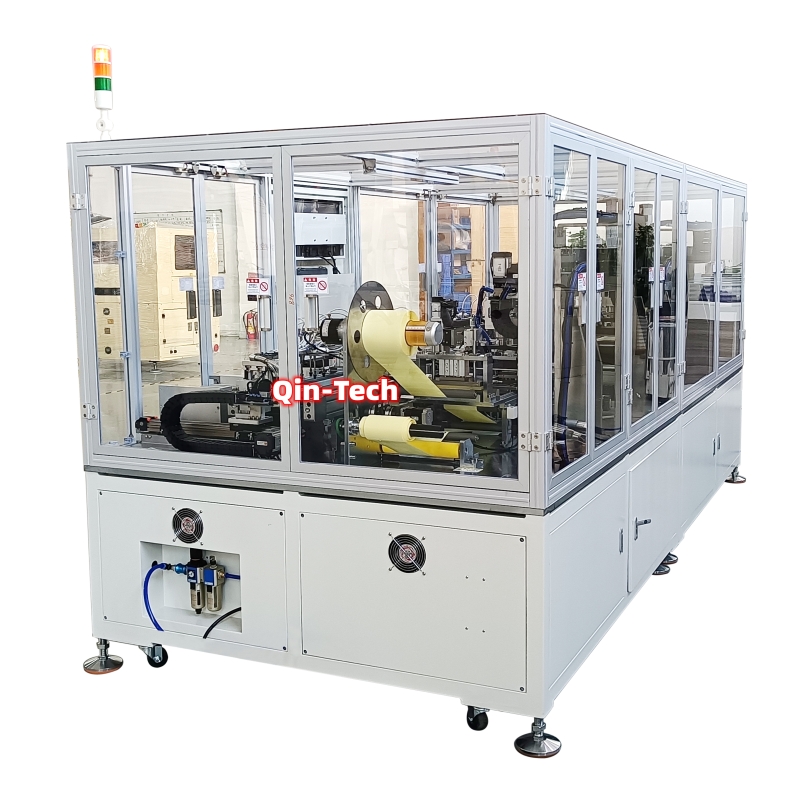

New energy aerogel thermal insulation and laminating equipment:

1. Connect with other customers' equipment for automatic feeding;

2. The equipment is divided into front and back modules, and the front part of the equipment is pasted with thermal insulation cotton front double-sided tape; At the back end, the equipment is attached with double-sided tape on the back side and the press release paper tearing hand, the pre-tear release paper, the secondary press release paper, automatic feeding;

3. Independent control system for the front and rear devices;

4. The product can be compatible with large size: maximum 250*250mm, minimum 80*80mm;

5. The equipment has two sets of high-precision CCD to ensure the installation accuracy of double-sided tape, which can achieve the repeated installation accuracy of ±0.2mm;

6. Automatic strapping machine can be optional to achieve automatic strapping and packaging, improve the efficiency of manual work and reduce labor.

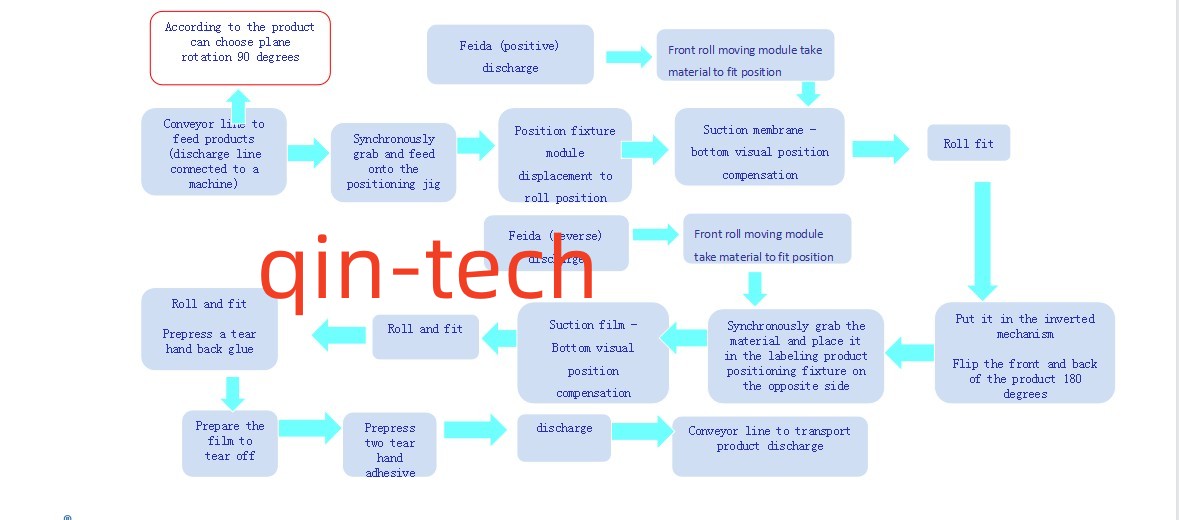

Process flow of new energy aerogel thermal insulation and laminating equipment:

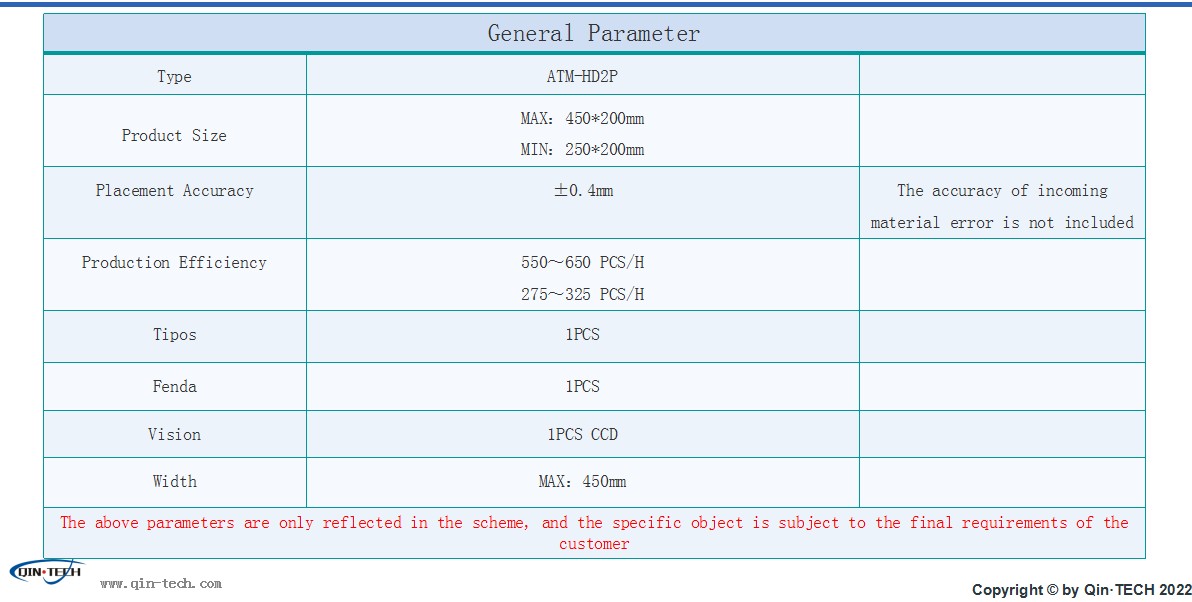

New energy aerogel thermal insulation and laminating equipment parameters:
