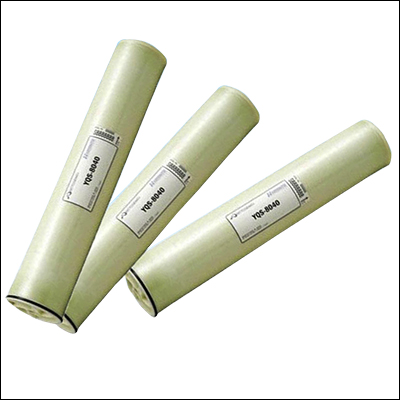

In-tech fiberglass membrane shell

In-tech fiberglass membrane shell

  • Product:In-tech fiberglass membrane shell
  • Catalogue:Water treatment supplies
  • Views:176747times
  • Update:2013/3/26 15:40:00
  • Call:133-6065-4218

Introduction:

Membrane shell, also known as membrane pressure vessels, reverse osmosis, nanofiltration, ultrafiltration membrane cellplant containers, Ying Thai film produced for the 304 stainless steel shell, the external surface of the polished, clean andbeautiful. According to the different openings into the side opening and side opening film membrane shell shell size is divided into 4-inch and 8 inch.

Technical Parameters:

Pressure: 2.0Mpa ~ 2.5Mpa

Structure: Standard parts and removal quick and easy

Sealing: After pressure testing

Water method: measuring water or water-side

Both ends of the organizational structure: the card type, in spring

1、4"  Side Entry



Model

Type

4040

4080

40120

40160

A

1088

2104

3120

4136

B

1194

2210

3226

4242

2、4"  End Entry



Model

Type

4040

4080

40120

40160

A

1030

2055

3017

4087

B

1072

2088

3104

4012

3、8"  Inner Spring Type


Model

Type

8040

8080

80120

80160

80200

80240

A

1227

2243

3259

4275

5291

6307

B

1317

2333

3349

4365

5381

6397

4、8"   Card Type



Model

Type

8040

8080

80120

80160

80200

80240

A

117

2193

3209

4225

5241

6257

B

1261

2277

3293

4309

5325

634
