Espa2-7 pure water low pressure reverse osmosis membrane

Espa2-7 pure water low pressure reverse osmosis membrane

  • Product:Espa2-7 pure water low pressure reverse osmosis membrane
  • Catalogue:Adhesive backing machine
  • Views:177635times
  • Update:2019/8/20 17:15:50
  • Call:133-6065-4218

ESPA2 is the diaphragm with the highest desalination rate in ESPA series. Different types of products are made by rolling this diaphragm, which has the characteristics of high desalination rate and better energy saving effect. ESPA2 comes in 4 "and 8" sizes. The membrane area of espa2-7 membrane element is 400 ft2 (34.1 m2), and the membrane quantity can be saved by about 10% when using the same water flux design. Espa2-7 is commonly used in ultra-pure water systems or secondary RO systems. Espa2-7 is an 8-inch membrane element.

I. performance parameters of espa2-7 pure water low pressure reverse osmosis membrane


* the performance parameters are obtained after the system runs steadily for 30 minutes. The actual test conditions may not be exactly the same as the above data, in which case the performance parameters are standardized data based on standard conditions. The deviation of water yield is within ±15 %.

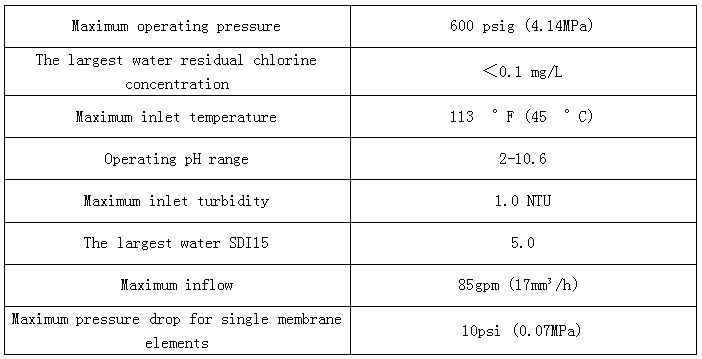

Ii. Use and restriction of products

This is only a general constraint. For specific projects, more conservative operating parameters can ensure better performance and longer service life. For details, please refer to the relevant technical data of Hyde energy.

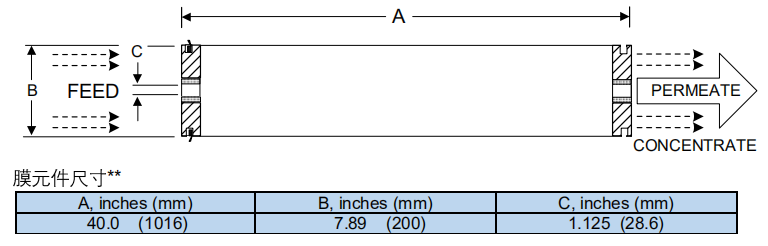

Iii. Product description

Disclaimer: the information and data provided herein are in good faith and in lieu of any warranty. All warranties, express or implied, including warranties of merchantability and fitness for a particular purpose, are hereby denied and excluded. The conditions and methods of use of our products are beyond our control. Hyde energy shall not be liable for the results or damages resulting from the use of this information and data. It is the responsibility of the user to determine the suitability of heidner's products for their particular use.
