Electric heating plant 30T/H soften...

This set of equipment is composed of pretreatment system plus softening water system. The control system adopts remote communication and control. In the office, the pure water system of the chemical production station can be directly monitored, and the resin tank can be cleaned online to ensure the control of the raw water and the salt tank. Extend the service life of the production equipment and stabilize the water quality.


Process flow


Raw water → pressure gauge → program control valve → resin tank → salt tank → softened water storage tank → water point


Equipment principle


The softened water equipment is mainly composed of tank body, sodium type cation resin, industrial salt and multi-way valve. The softened water equipment as the name suggests is the equipment for reducing water hardness. The automatic sodium ion exchanger adopts the principle of ion exchange to remove calcium and magnesium in water. Scale ion. When the raw water containing hardness ions passes through the resin layer in the exchanger, the calcium and magnesium ions in the water are replaced with the sodium ions adsorbed by the resin, and the resin adsorbs calcium and magnesium ions and the sodium ions enter the water, so that the water flows out of the exchanger. Water is the softened water from which the hardness is removed.


Equipment advantage


The hardness of water is mainly formed and expressed by calcium and magnesium. Therefore, cation exchange resin (softener) is generally used to replace Ca2+ and Mg2+ (the main component forming scale) in water. With the increase of Ca2+ and Mg2+ in the resin, the resin The efficiency of removing Ca2+ and Mg2+ is gradually reduced. When the resin absorbs a certain amount of calcium and magnesium ions, it must be regenerated. The regeneration process is to rinse the resin layer with the brine in the salt tank, and the hardness ions on the resin are replaced, and the resin is discharged with the recycled waste liquid. The softening exchange function is restored.


Application field




· Low-pressure boiler feed water required softening water and demineralized pure water treatment
· Urban heating, washing, boiler soft water / deep well water treatment and front end treatment of reverse osmosis system.


After sales service


• Product Warranty:
Within one year after the product or equipment has been purchased or installed, if there is any quality problem, the company will replace it free of charge (except for man-made or natural disasters).
•lifetime warranty
Our company provides users with product and equipment lifetime warranty service, so that you will no longer worry about maintenance after purchasing equipment.
• After sales service response time
When there is a problem with the equipment that needs to be sold out, after receiving your call, we will respond within 24 hours to escort your normal production!
...

Photovoltaic power plant 25T/H ultr...

Device Description

The system adopts single-stage reverse osmosis mixing bed process, the single-stage reverse osmosis water conductivity is less than 5us/cm, and the mixed bed system adopts one-to-one equipment (can be operated in a single tank or in a double tank), the whole system All pumps are used one by one. The terminal pump uses constant pressure frequency conversion to control the water supply to ensure the water consumption and water pressure of each floor of the workshop. The system guarantees the customer's water for ultrapure water under the low input cost. Claim.

Process flow

Raw water→raw water tank→raw water booster pump→quartz sand filter→activated carbon filter→softener→security filter→first stage high pressure pump→first stage reverse osmosis system→intermediate water tank→secondary high pressure pump→secondary reverse osmosis system →RO water tank→booster pump→mixed bed system→ultra pure water tank→water supply pump→ultraviolet sterilizer→security filter→water point

Equipment principle

Reverse osmosis (RO) is the selective retention of a reverse osmosis membrane that allows only water molecules to pass through. At a pressure above the osmotic pressure of the solution, water molecules are continuously permeable to the membrane, while heavy metals are smaller than the pore size of the reverse osmosis membrane. Ions, organic matter, bacteria, viruses, etc. are trapped on the water inlet side of the membrane to achieve separation and purification purposes. The entire working principle is based on physical methods, without adding any fungicides and chemicals, so chemical disguise does not occur.
Mixed beds are generally suitable for use behind reverse osmosis or directly for water with lower salt content. Ion exchange is a special solid adsorption process that is carried out in an electrolyte solution of an ion exchanger. The mixed bed is a deep desalination device for the manufacture of high-purity water. The water resistivity is 10-18MΩ/CM°C, and the pH of the effluent water is close to neutral.

Equipment advantage

The production of the mixed bed system meets the water requirements of some enterprises for ultrapure water, the continuous effluent water quality is stable, and the equipment overdraft cost of the mixed bed system is low.

Application field

·Ultra-pure water treatment in industries such as electronics, semiconductors, printed circuit boards and integrated circuits, and precision machinery manufacturing
·Ultra-chemical processing, ultra-pure water treatment in industries such as fine chemicals and sophisticated science
· Water for electronic industry flushing water for electronic components such as integrated circuits, silicon wafers, and display tubes;
·Water for the pharmaceutical industry, large infusions, injections, tablets, biochemical products, equipment cleaning, etc.;
·Other process water, ultra-pure water for automobile, home appliance coating, coated glass, cosmetics, fine chemicals, etc.

After sales service

• Product Warranty:
Within one year after the product or equipment has been purchased or installed, if there is any quality problem, the company will replace it free of charge (except for man-made or natural disasters).
•lifetime warranty
Our company provides users with product and equipment lifetime warranty service, so that you will no longer worry about maintenance after purchasing equipment.
• After sales service response time
When there is a problem with the equipment that needs to be sold out, after receiving your call, we will respond within 24 hours to escort your normal production!

45 tons of garbage permeate treatme...

Device Description


The system is treated by ultrafiltration plus reverse osmosis system. The domestic garbage is treated by the pre-stage wastewater and then pretreated to the ultrafiltration system. The ultrafiltration effluent water quality is stable for a long time, and then the electric neutral high anti-pollution reverse osmosis membrane is used in the latter stage. The system handles the water quality after treatment and returns directly to the production line for use, which truly serves the purpose of wastewater reuse.


Reverse osmosis (RO) is the selective retention of a reverse osmosis membrane that allows only water molecules to pass through. At a pressure above the osmotic pressure of the solution, the water molecules are continuously permeable to the membrane, while the heavy metal is smaller than the pore size of the reverse osmosis membrane. Ions, organic matter, bacteria, viruses, etc. are trapped on the water inlet side of the membrane to achieve separation and purification purposes. The entire working principle is based on physical methods, without adding any fungicides and chemicals, so chemical disguise does not occur.
...

Food Group 50T/D Pure Water System

Device Description

The system adopts single-stage reverse osmosis treatment, all imported reverse osmosis membrane components, all connecting pipelines are made of 304 stainless steel material, security precision filter cartridge adopts high-precision folding filter core, automatic PLC control, fault with alarm device to ensure long-term equipment. Stable operation.

Process flow

Raw water → original water tank → raw water booster pump → quartz sand filter → activated carbon filter → scale inhibitor feeding equipment → precision filter → first stage high pressure pump → first stage reverse osmosis system → pure water tank → water supply pump → ultraviolet sterilization → Security Filter → Water Point

Equipment principle

Reverse osmosis (RO) is the selective retention of a reverse osmosis membrane that allows only water molecules to pass through. At a pressure above the osmotic pressure of the solution, water molecules are continuously permeable to the membrane, while heavy metals are smaller than the pore size of the reverse osmosis membrane. Ions, organic matter, bacteria, viruses, etc. are trapped on the water inlet side of the membrane to achieve separation and purification purposes. The entire working principle is based on physical methods, without adding any fungicides and chemicals, so chemical disguise does not occur.

Equipment advantage

·Imported reverse osmosis membrane with high salt rejection, long service life and low operating cost;
· Adopt automatic pretreatment system to realize unmanned operation;
·Imported booster pump, high efficiency, low noise, stable and reliable;
· Online water quality monitoring and control to monitor water quality changes in real time to ensure water quality safety;
· Fully automatic electronic control program, optional touch screen operation, easy to use;
· Personalized design that meets local water quality to meet all needs;

Application field

·Processing pure water treatment in industries such as fine chemicals, sophisticated science, and cosmetics manufacturing
·Purified water treatment in pharmaceutical, medical, life science and other industries
· Purification and preparation water for process water/chemical circulating water and chemical product manufacturing in textile and chemical industries;
· Water for purification and preparation of water for food and beverage industry, drinking pure water, beverages, beer, liquor, health care products, etc.;
·Community, real estate property, schools, factories, hospitals, tea houses, hotels, canteens and other enterprises and institutions with a large number of people;
· Preparation of bottled water, mineral water and other filling water;

After sales service

• Product Warranty:
Within one year after the product or equipment has been purchased or installed, if there is any quality problem, the company will replace it free of charge (except for man-made or natural disasters).
•lifetime warranty
Our company provides users with product and equipment lifetime warranty service, so that you will no longer worry about maintenance after purchasing equipment.
• After sales service response time
When there is a problem with the equipment that needs to be sold out, after receiving your call, we will respond within 24 hours to escort your normal production!
...

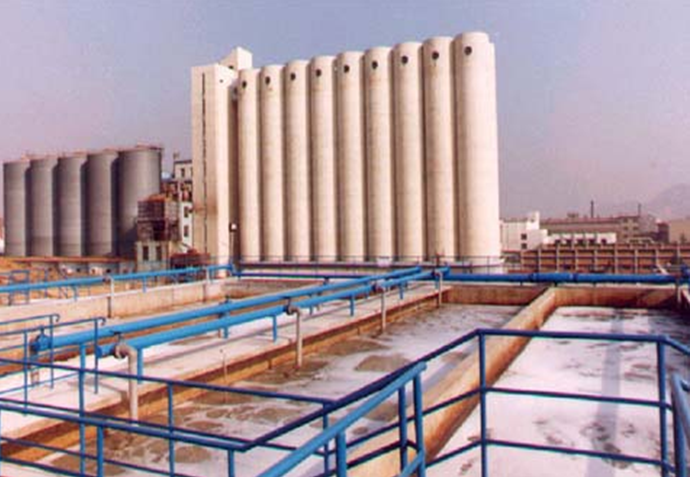

Wastewater treatment in a brewery i...

Water quality after treatment

4000 mg/CODCr lCODCr 150 mg/l

BOD5 2000 mg/lBOD5 60 mg/l

SS 400 mg/l SS 150 mg/l

PH 6-9 PH 6-9

The CODCr index was no more than 150mg/l.

A food factory in xinjiang 15 tons/...

Technical design guidelines

The design of this water treatment process is based on full consideration of the following factors:

2.1 users' requirements on the quality and yield of product water;

2.2 reliability of process design;

2.3 simplicity of equipment and intelligent operation;

2.4 investment and operating expenses;

2.5 physical and chemical cleaning of equipment;

2.6 stability of water quality;

2.7 reliable online monitoring means.

The system has requirements on the outside world

3.1 water supply: municipal tap water.

3.2 power supply: the user shall transmit the power cord to the electronic control cabinet of the equipment.

3.3 water production: the water produced by the supplier shall be connected to the ultra-pure water storage tank.

3.4 site: the user shall provide the equipment area.

3.5 drugs: all drugs consumed during debugging and operation shall be provided by users.

The technological requirements

4.1 raw water quality: local municipal tap water standard (conductivity ≤300us/cm)

4.2 effluent water quality: the conductivity of produced water after treatment is ≤10us/cm

4.3 system outlet water: the designed water yield of the system terminal is ≥15m3/h

Process diagram

Tap water → original water tank (customer provided) → original water pump → multi-media filter → activated carbon filter →5um precision filter → reverse osmosis high-pressure pump → reverse osmosis system → reverse osmosis water production (customer provided) → water point

The technological process and production of this set of equipment are customized according to customer requirements, the final interpretation right belongs to qin tai sheng water treatment all
